Vibration Meter

  • Filter

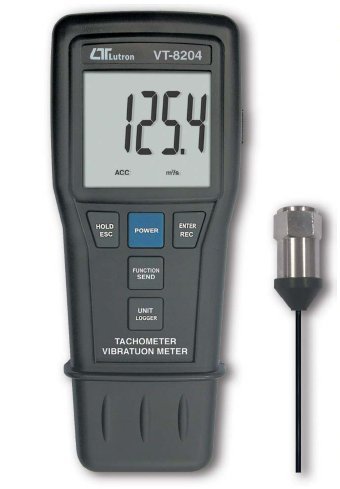

FEATURES * Separate professional vibration sensor. * Vibration meter Acceleration : 200 m/s^2, RMS, PEAK, Max. Hold., g, ft/s^2. Velocity : 200 mm/s, RMS, PEAK, Max. Hold, cm/s, inch/s. Displacement ( p-p ) : 2 mm, Max. Hold. * Tachometer ( photo ) : 5 to 100,000 RPM. Tachometer ( contact ) : 5 to 19,000 RPM. Tachometer ( surface speed ) : m/min., ft/min., inch/min. * Laser photo tachometer. * Data logger. * Data hold, Record (max., min.). * RS-232 computer interface. * DC 1.5V ( UM-3, AA ) x 4 PCs. * Patented.

FEATURES * Separate professional vibration sensor. * Acceleration : 200 m/s^2. * Velocity : 200 mm/s. * Displacement ( p-p ) : 2 mm. * RMS, Peak value. * RS-232 computer interface. * DC 9V battery ( 006P ).

FEATURES * Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed. * Separate vibration probe. * Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954. * Professional vibration meter supply with vibration sensor, full set. * Velocity measuring range 200 mm/s. * Acceleration range 200 m/s . * RMS & Peak measurement. * Data hold. * Memory function to record max. and min. reading with recall. * Complete set with hard carrying case.

FEATURES * Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment and looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed. * Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954. * Supply with vibration sensor & magnetic base, full set. * Velocity range : 200 mm/s. * Acceleration range : 200 m/s^2 * RMS & Peak measurement. * Data hold, Memory ( Max. & Min. ). * Separate vibration probe. * RS 232 computer interface. * Optional data acquisition software. * Microcomputer circuit. * Auto shut off saves battery life. * Hard carrying case include.

FEATURES * Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment and looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed. * Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954. * Supply with vibration sensor & magnetic base, full set. * Velocity range : 200 mm/s. * Acceleration range : 200 m/s^2 * RMS & Peak measurement. * Data hold, Memory ( Max. & Min. ). * Separate vibration probe. * Optional data acquisition software. * Microcomputer circuit. * Auto shut off saves battery life. * Hard carrying case include.

FEATURES * Applications for industrial vibration monitoring . * Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954. * Supply with vibration sensor & magnetic base, full set. * Metric & Imperial display unit * Velocity measuring range : 200 mm/s, 7.87 inch/sec. * Acceleration measuring range : 200 m/s^2, 656 ft/s^2. * RMS & Peak measurement. * Wide frequency range. * Data hold. * Memory function to record max. and min. reading. * Separate vibration probe. * RS 232 computer interface. * Microcomputer circuit. * Hard carrying case included.
