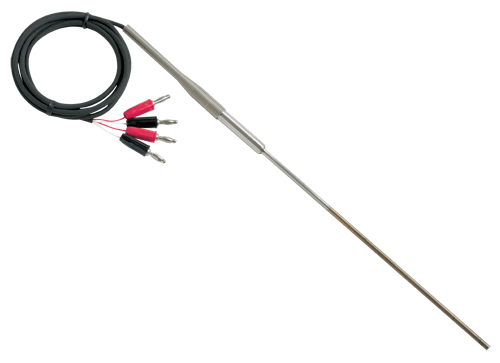

Fluke 884X-RTD T100 Ohm RTD Temperature Probe

Category: Test Leads, Probes, Clips
Specification
Resistance Nominal 100 Ω
Temperature coefficient 0.00385 Ω/Ω ºC nominal
Temperature range -200 C to 300 ºC (transition and cable temperature: 0 ºC to 150 ºC)
Drift rate + 0.13 ºC at 0 ºC after 1000 hours at 300 ºC
Sheath Material 316 stainless steel
Leads Teflon-insulated, nickel-plated stranded copper, 22 AWG
Termination 4-wire banana
Time constant Four seconds maximum for 63.2% response to step change in water moving at 3 fps
Bending radius 19 mm (3/4 in) except for 50 mm (2 in) area of sheath near tip
Immersion At least 100 mm (4 in) recommended
Accuracy ±0.50 ºC at -196 ºC
±0.052 ºC at 200 ºC
±0.055 ºC at 300 ºC
Size 9 in L x 3/16 in diameter
