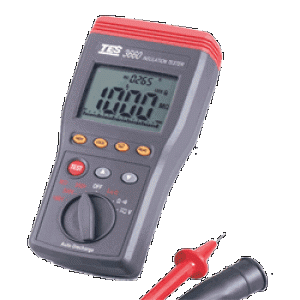

TES-3660 Autoranging Insulation Tester

Category: Insulation Tester

Lo Ω
Range
Resolution
Accuracy

Short Ciruit Current
40.00 Ω
0.01 Ω
± 2%rdg ± 2dgts
>200mA

AC Voltage (40Hz to 500Hz)
Range
Resolution
Accuracy
Sensitivity
Overload Protection
999V
1V

2% +2
2V
1000Vrms

Input impedance : 9MΩ

Resistance (Continuity<40 Ω on the 9999 Ω range)
Range
Resolution
Accuracy
Overload Protection
9999 Ω
1 Ω

1% ± 2 dgts
1000V

DC Voltage
Range
Resolution

Accuracy

Sensitivity
Overload Protection
999V
1V
1% +2
2V
1000Vrms

Input impedance : 9MΩ

Insulation Resistance
Range
1000M Ω /250V w/ autorange 1000M/400M/40M/4M
2000M Ω /500V w/ autorange 2000M/400M/40M/4M
4000M Ω /1000V w/ autorange 4000M/400M/40M/4M
Resolution
1000M Ω /250V, 1K Ω to 10 M Ω
2000M Ω /500V, 1K Ω to 10 M Ω
4000M Ω /1000V, 1K Ω to 10M Ω
Accuracy
3%rdg+5Count (under 1G Ω )
5%rdg+5Count (under 4G Ω )
Nominal Current >1mA
