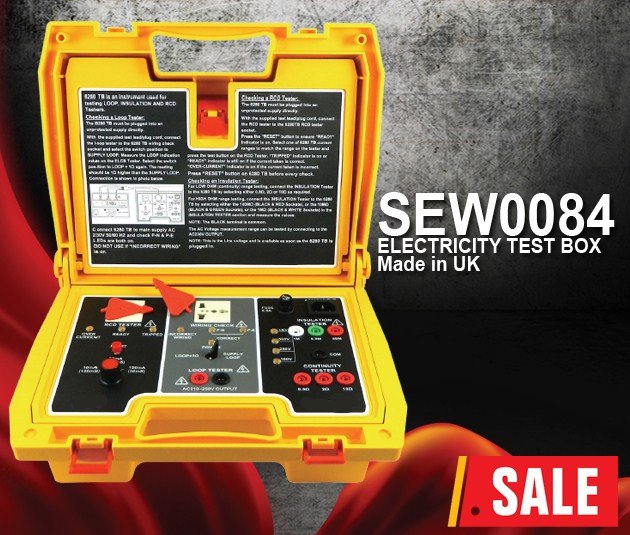

SEW0084-ELECTRICITY TEST BOX

Category: Test Box/Trainers



FEATURES
● Wide range of operating voltage from AC 210V/50Hz to 250V/50Hz.
● For checking AC voltage.
● For checking a RCD tester's test current & time in mA(ms).
● For checking a loop tester.
● For wiring check (Phase, Neutral, Earth).
● For checking continuity.
● For checking insulation (The maximum is 1.2kV).
● For checking UK16th edition.

  SPECIFICATIONS
RCD Testing
Range 10mA @ 150ms
30mA @ 150ms
150mA @ 30ms
Insulation Testing
Range 1MΩ / 9.9MΩ / 99MΩ
Accuracy ± 1%
Max. Testing 1.2kV
Continuity Testing
Range 0.5Ω / 2Ω / 10Ω
Accuracy ± 0.05Ω / ± 0.1Ω / ± 0.2Ω
Max. Current 300mA
LOOP Testing
Range Supply Loop / Supply Loop +1Ω
Accuracy 0.45Ω ± 0.05Ω / 1.45Ω ± 0.05Ω
• Dimension: 330(L)x260(W)x160(D)mm
• Weight: Approx. 2570g
